Product description

Features:

· Quickly disconnect DC power from the solar system to the charge controller, battery and/or inverter

·IP66 waterproof, durable structure, excellent weather resistance (-40℉~185℉), UV resistance

· With safety padlock to ensure it is locked in closed position and tamper proof

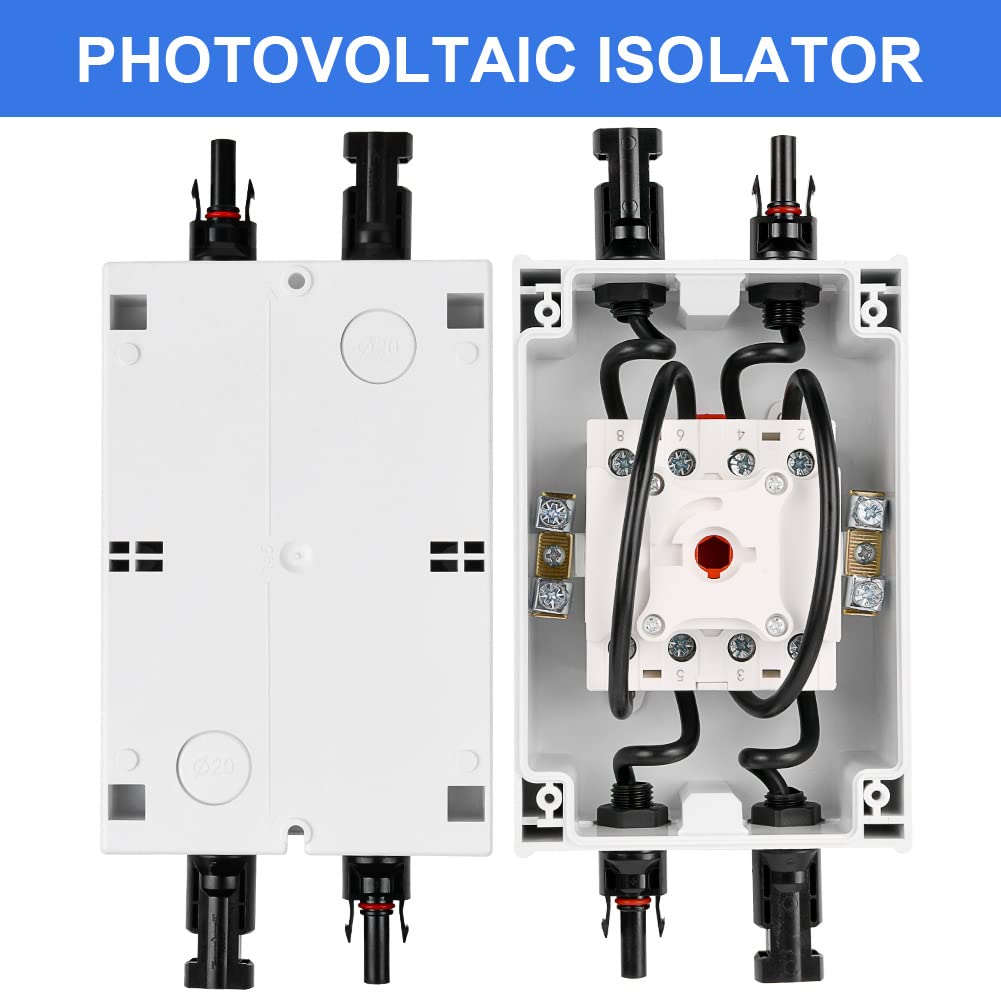

· DC insulators with pre-wired solar connectors

Specification:

Material: PC flame retardant

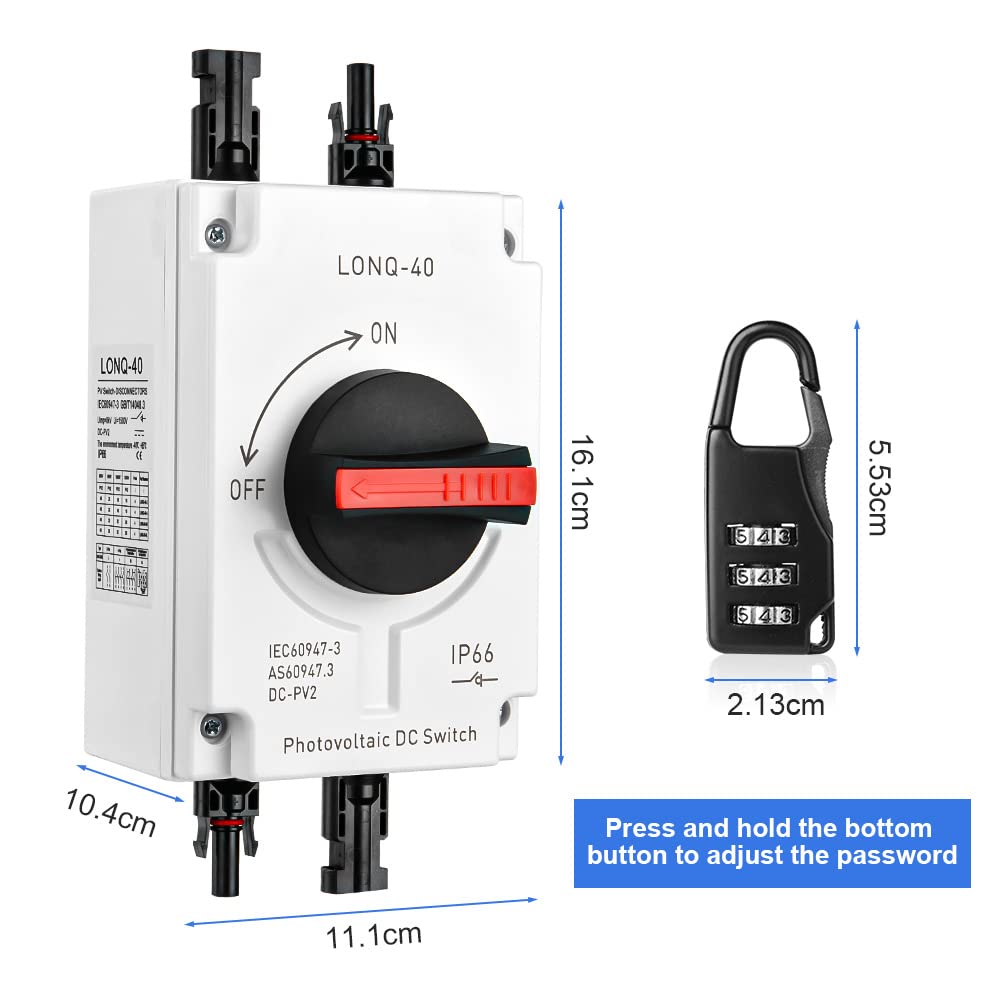

Size: 10.4*16.1*11.1cm

model: LONQ-40

Pole: 4P

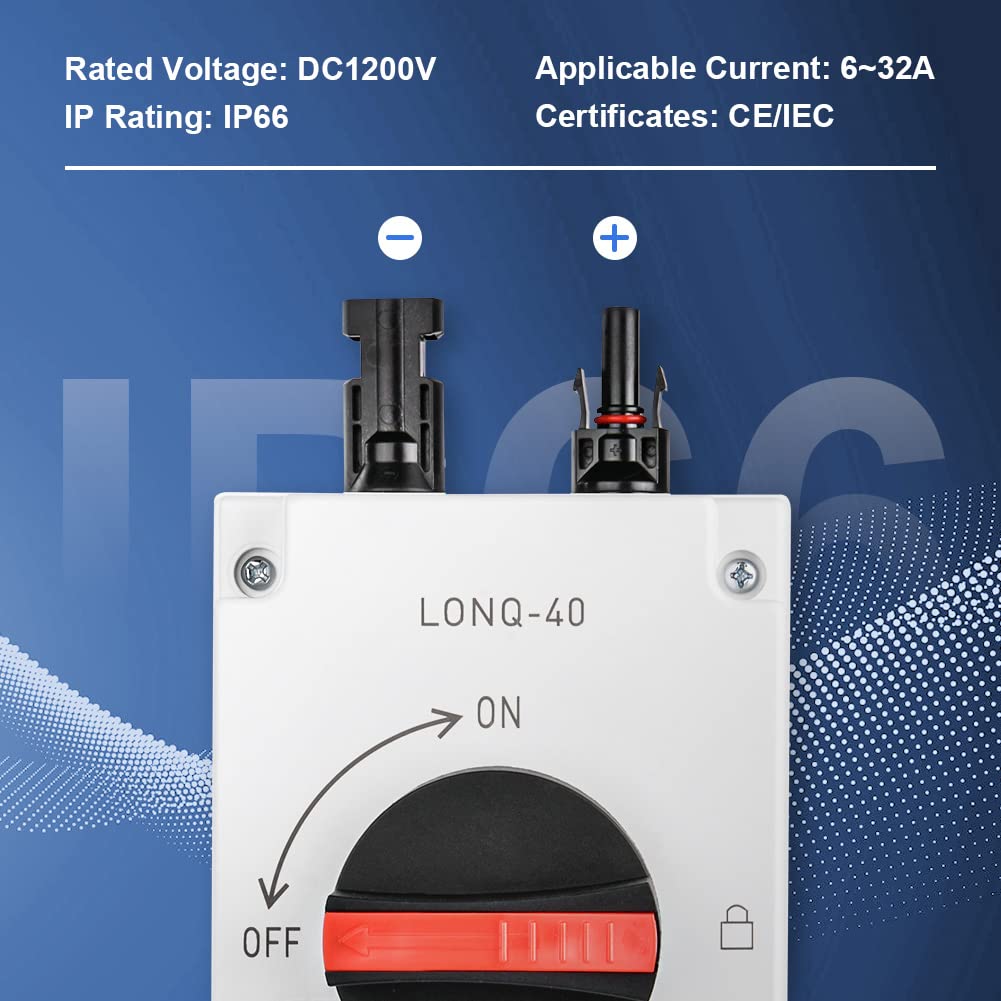

Rated voltage: 300VDC to 1200VDC

Rated current: 10A-40A

Dimensions: 110x120x160mm

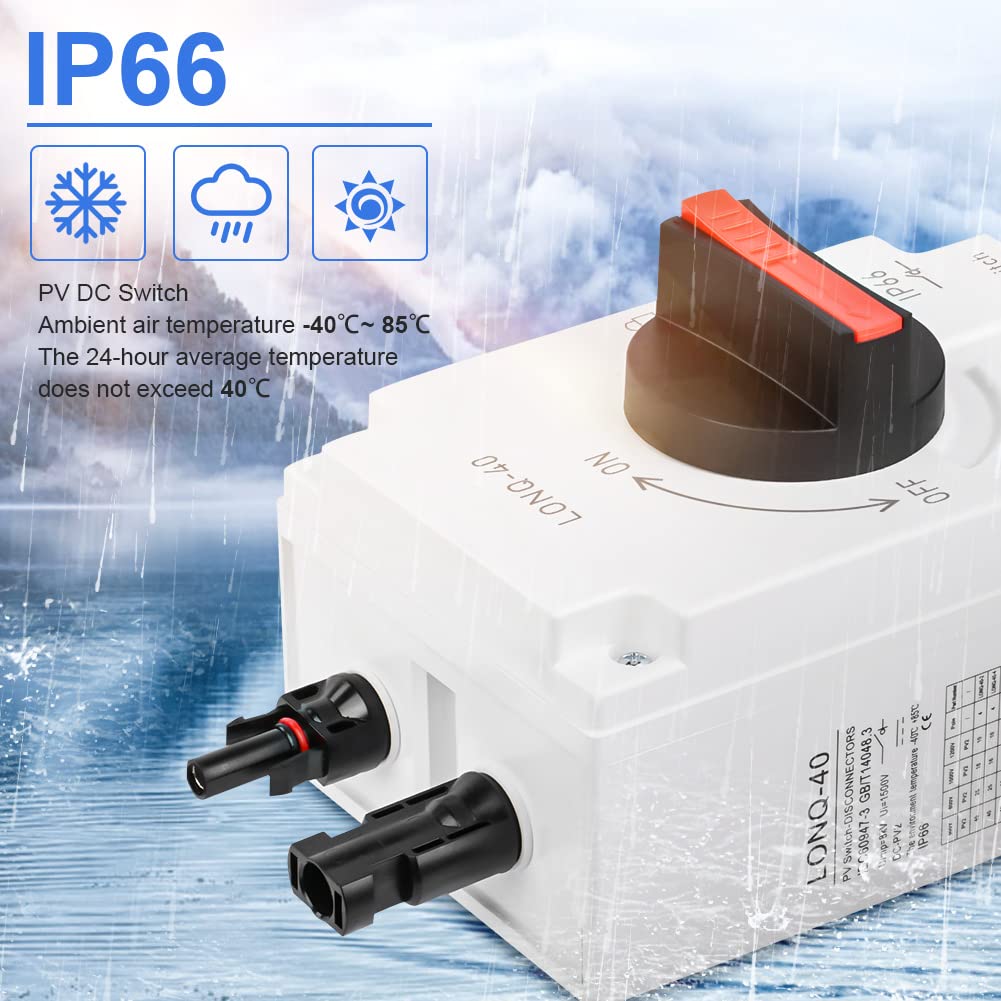

Waterproof degree: IP66

Certificate: CE/TUV/IEC/ROHS/CCC

Standards: IEC60947-3

Ambient temperature: -40℃--+85℃

Insulated voltage: DC1500V

Connection type: MC4/M20

Single weight: 750g

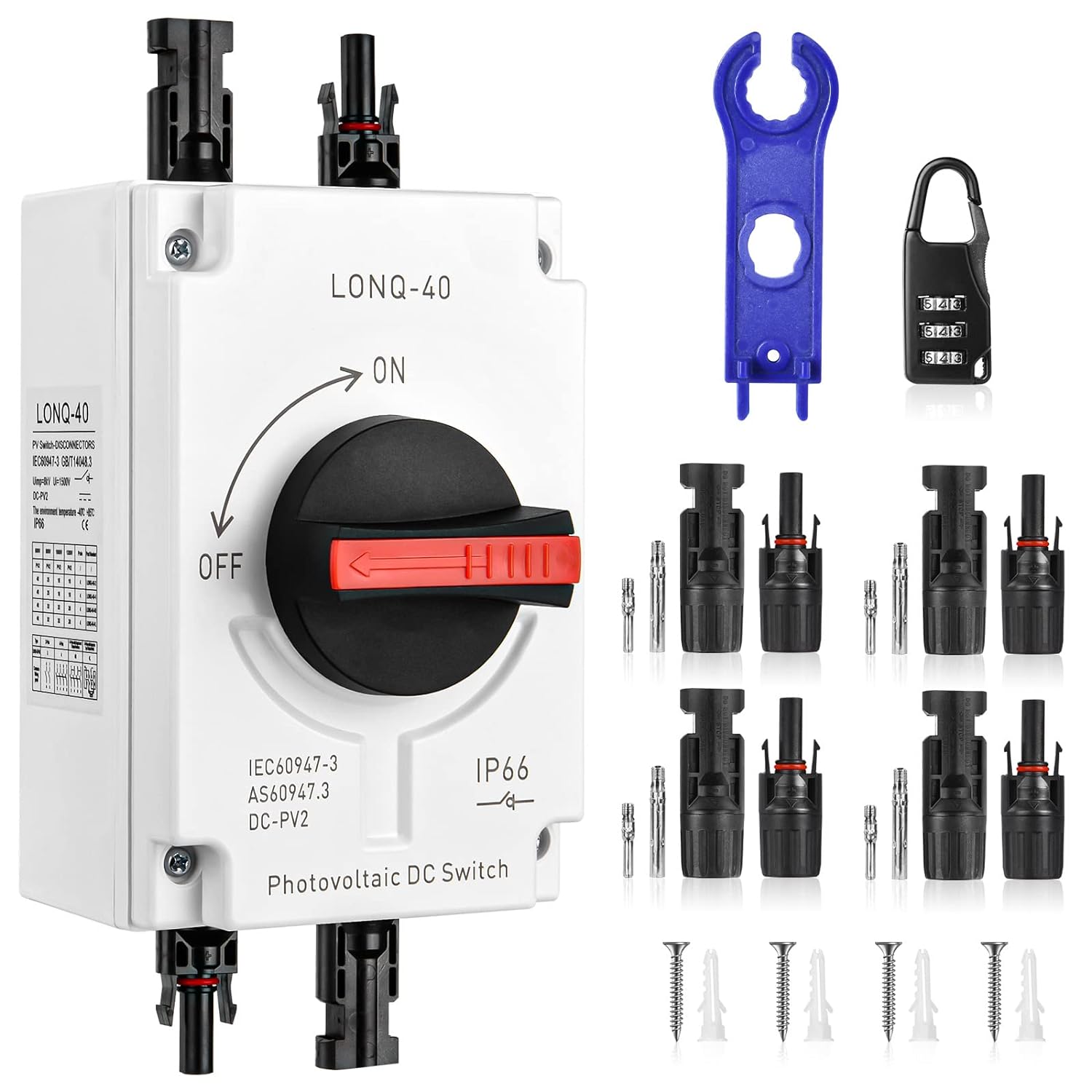

Packing List:

1* DC disconnect switch

4* plastic expansion

4* Mounting screws

4* MC4-30A interface

1* Special wrench

1* combination lock

1* instruction manual

Notice:

Due to manual measurement, there may be some size errors;

Due to the shooting environment, there may be some color difference;
